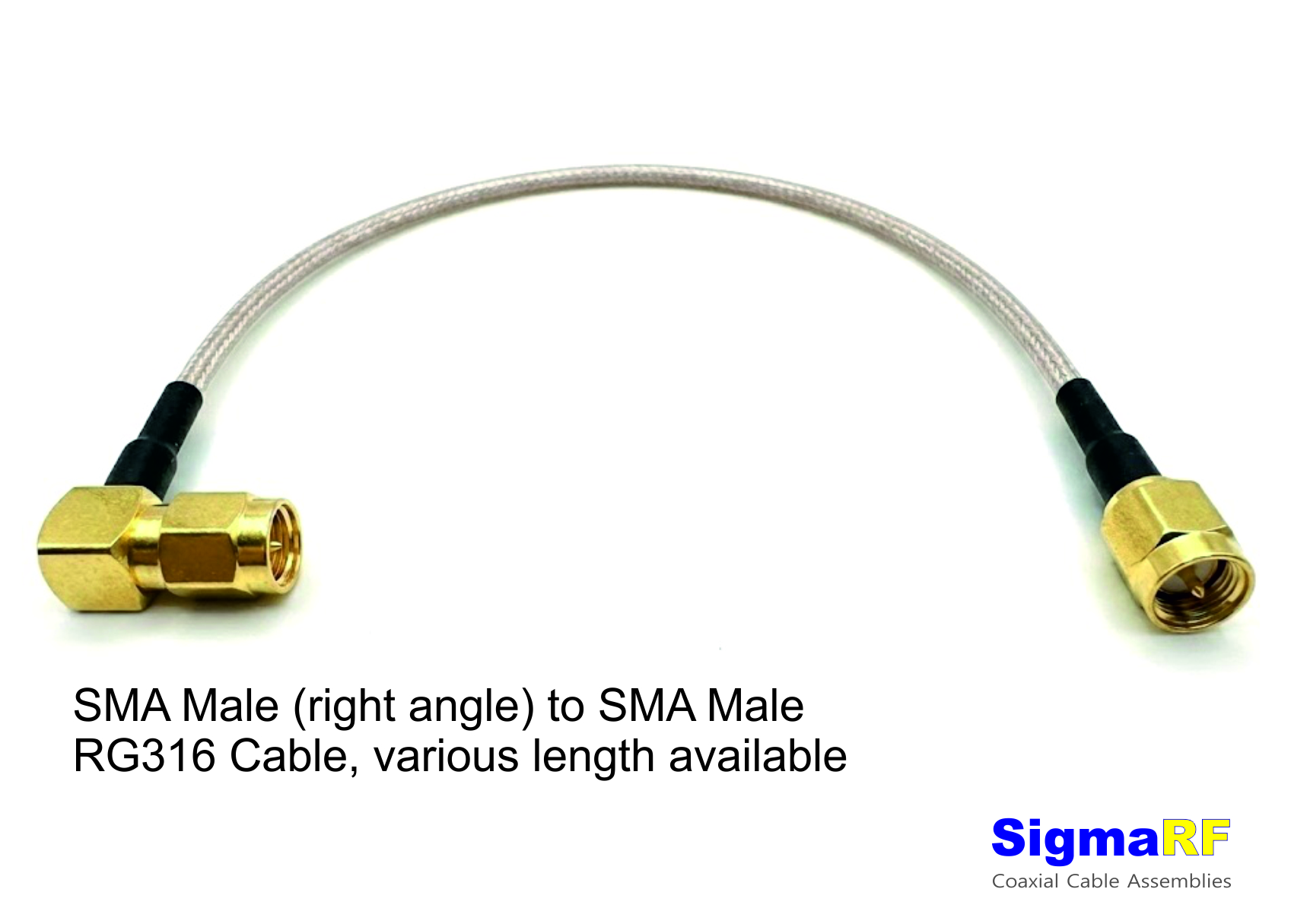

SMA(m) right angle-RG316 Coaxial Cable-SMA(m) connector cable assembly
Published on 2/4/2026 • Updated on 2/5/2026
SigmaRF offers wide range of standard and custom length Coaxial Cable and Connector assemblies made to your specifications
- Coaxial Cable: RG316 Coaxial Cable per MIL specification
- Coaxial Cable Specification: RG316 is a flexible 50-ohm coaxial cable, works upto 3.0 GHz, approximately 2.5mm in diameter, Attenuation (typical) 0.29 dB/m @ 100 MHz, 1.46 dB/m @ 2.4 GHz, featuring a stranded silver-plated copper-clad steel (SPCCS) center conductor and FEP jacket, commonly used for high-frequency RF, microwave, and telecommunications. It is designed for high-temperature resistance, low signal loss, and good anti-interference.
- Coaxial Connector 1: SMA Male right angle, Brass body
- Coaxial Connector 2: SMA Male Straight, Brass Body
- Cable Length: 12, 18, 24, 36, 48, 60, 72 Inch
- Delivery: 2 Weeks
- Shipment: FOB Factory, we can quote including freight
- Price: ₹200 - ₹300 Get Quote
